RESEARCH PAPER
Reliability of patellar volume in sex determination – a computed tomography study
1
I Department of Medical Radiology, Medical University, Lublin, Poland
2
Doctoral School, Medical University, Lublin, Poland
3
Department of Correct, Clinical and Imaging Anatomy, Medical University, Lublin, Poland
4
I Clinic of Anaesthesiology and Intensive Therapy, Medical University, Lublin, Poland
5
Department of Medical Informatics and Statistics with E-Health Lab, Medical University, Lublin, Poland
6
Department of Radiology, VoxeMedical Diagnostic Centre l, Łańcut, Poland
Corresponding author
Karol Jakubik
I Department of Medical Radiology, Medical University of Lublin, Jaczewskiego 8, 20-090, Lublin, Poland
I Department of Medical Radiology, Medical University of Lublin, Jaczewskiego 8, 20-090, Lublin, Poland
KEYWORDS
TOPICS
ABSTRACT
Introduction and objective:
Determination of the sex of skeletal remains is of great importance in forensic anthropology. Since skeletons can often be incomplete, sex assessment based on a single bone becomes useful. The aim of this study is to investigate the sexual dimorphism of the patella, and the accuracy of patellar measurements in determining the sex of an individual in a contemporary Polish population sample using computed tomography.
Material and methods:

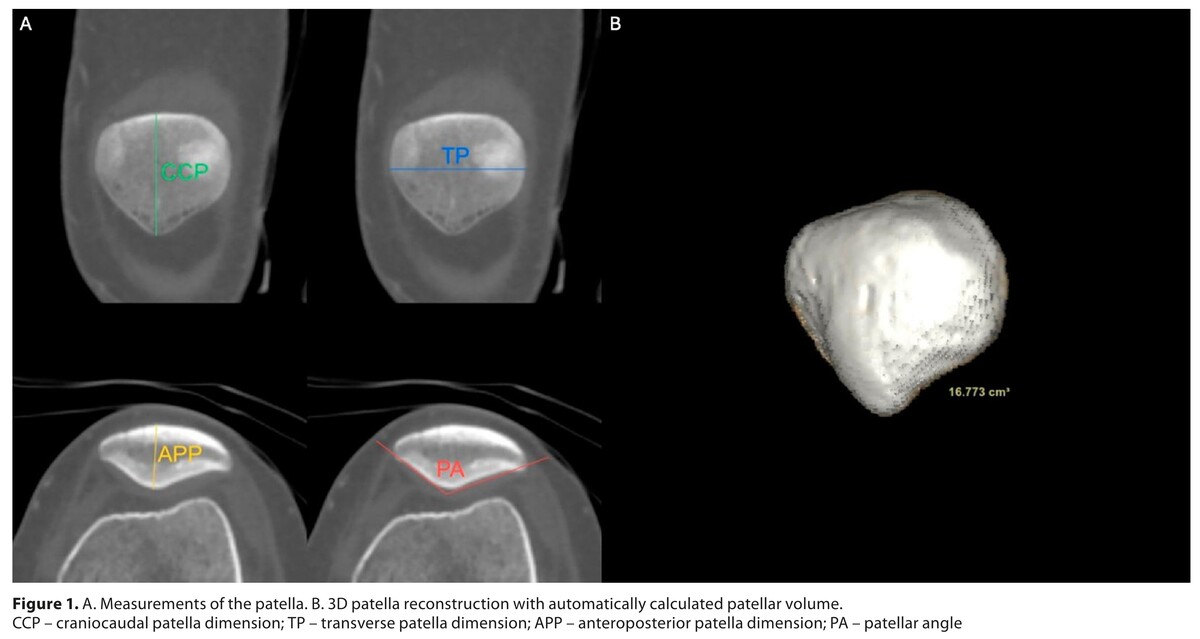

The study sample consisted of adult patients of Polish descent undergoing computed tomography angiography of lower extremities. A total of 130 individuals (69 males and 61 females) were included in the study. Five measurements were examined for left-hand side patellas: craniocaudal patella dimension (CCP), transverse patella dimension (TP), anteroposterior patella dimension (APP), patellar angle (PA) and patellar volume (PV).
Results:
All studied measurements were significantly higher in males than in females. According to the receiver operating characteristics analysis, PV proved to be the most reliable parameter for distinguishing male from female patella, with an accuracy rate of 83.9%. The CCP and TP also showed high accuracy values of 82.3% and 81.5%, respectively. PA proved to be the least effective parameter for sex identification in the study (61.5% accuracy). The multivariate model, based on all measurements, achieved an accuracy of 82.3%. An analysis of variance showed that there was no statistically significant difference between the multivariate and the univariate model for patellar volume.
Conclusions:
The results indicate that the patellar measurements, especially PV, may be useful in sex determination in the Polish population.
Determination of the sex of skeletal remains is of great importance in forensic anthropology. Since skeletons can often be incomplete, sex assessment based on a single bone becomes useful. The aim of this study is to investigate the sexual dimorphism of the patella, and the accuracy of patellar measurements in determining the sex of an individual in a contemporary Polish population sample using computed tomography.
Material and methods:
The study sample consisted of adult patients of Polish descent undergoing computed tomography angiography of lower extremities. A total of 130 individuals (69 males and 61 females) were included in the study. Five measurements were examined for left-hand side patellas: craniocaudal patella dimension (CCP), transverse patella dimension (TP), anteroposterior patella dimension (APP), patellar angle (PA) and patellar volume (PV).
Results:
All studied measurements were significantly higher in males than in females. According to the receiver operating characteristics analysis, PV proved to be the most reliable parameter for distinguishing male from female patella, with an accuracy rate of 83.9%. The CCP and TP also showed high accuracy values of 82.3% and 81.5%, respectively. PA proved to be the least effective parameter for sex identification in the study (61.5% accuracy). The multivariate model, based on all measurements, achieved an accuracy of 82.3%. An analysis of variance showed that there was no statistically significant difference between the multivariate and the univariate model for patellar volume.
Conclusions:
The results indicate that the patellar measurements, especially PV, may be useful in sex determination in the Polish population.
REFERENCES (21)
1.
Krishan K, Chatterjee PM, Kanchan T, et al. A review of sex estimation techniques during examination of skeletal remains in forensic anthropology casework. Forensic Sci Int. 2016;261:165.e1–165.e8. doi:10.1016/j.forsciint.2016.02.007.
2.
Ogawa Y, Imaizumi K, Miyasaka S, Yoshino M. Discriminant functions for sex estimation of modern Japanese skulls. J Forensic Leg Med. 2013;20(4):234–238. doi:10.1016/j.jflm.2012.09.023.
3.
Chatterjee PM, Krishan K, Singh RK, Kanchan T. Sex estimation from the femur using discriminant function analysis in a Central Indian population. Med Sci Law. 2020;60(2):112–121. doi:10.1177/0025802419900576.
4.
Tallman SD, Blanton AI. Distal Humerus Morphological Variation and Sex Estimation in Modern Thai Individuals. J Forensic Sci. 2020;65(2):361–371. doi:10.1111/1556-4029.14218.
5.
Zhang K, Yang M, Cui JH, et al. Stature estimation from the combination of clavicle, scapula, and sternum from 3D-VRT images in Chinese population. Anthropol Anz Ber Uber Biol-Anthropol Lit. 2019;76(1):69–78. doi:10.1127/anthranz/2019/0887.
6.
Bedalov A, Bašić Ž, Marelja I, et al. Sex estimation of the sternum by automatic image processing of multi-slice computed tomography images in a Croatian population sample: a retrospective study. Croat Med J. 2019;60(3):237–245. doi:10.3325/cmj.2019.60.237.
7.
Peleg S, Pelleg Kallevag R, et al. New methods for sex estimation using sternum and rib morphology. Int J Legal Med. 2020;134(4):1519–1530. doi:10.1007/s00414-020-02266-4.
8.
Karaca AM, Senol E, Eraslan C. Evaluation of the usage of the cervical 7th vertebra in sex estimation with measurements on computerized tomography images. Leg Med Tokyo Jpn. 2023;62:102220. doi:10.1016/j.legalmed.2023.102220.
9.
Michiue T, Hishmat AM, Oritani S, et al. Virtual computed tomography morphometry of the patella for estimation of sex using postmortem Japanese adult data in forensic identification. Forensic Sci Int. 2018;285:206.e1–206.e6. doi:10.1016/j.forsciint.2017.11.029.
10.
Yasar Teke H, Ünlütürk Ö, Günaydin E, et al. Determining gender by taking measurements from magnetic resonance images of the patella. J Forensic Leg Med. 2018;58:87–92. doi:10.1016/j.jflm.2018.05.002.
11.
Zhan M jun, Li C lin, Fan F, et al. Estimation of sex based on patella measurements in a contemporary Chinese population using multidetector computed tomography: An automatic measurement method. Leg Med. 2020;47:101778. doi:10.1016/j.legalmed.2020.101778.
12.
Rahmani E, Mohammadi S, Babahajian A, et al. Anthropometric characteristics of patella for sex estimation using magnetic resonance images. Forensic Imaging. 2020;23:200412. doi:10.1016/j.fri.2020.200412.
13.
Indra L, Vach W, Desideri J, et al. Testing the validity of population-specific sex estimation equations: An evaluation based on talus and patella measurements. Sci Justice. 2021;61(5):555–563. doi:10.1016/j.scijus.2021.06.011.
14.
Srinak N, Sukvitchai P. Sex estimation from patella using discriminant analysis in Central Thai population. Can Soc Forensic Sci J. 2023;56(4):231–247. doi:10.1080/00085030.2023.2175956.
15.
Lo Re G, Salerno S, Terranova MC, et al. Virtopsy and Living Individuals Evaluation Using Computed Tomography in Forensic Diagnostic Imaging. Semin Ultrasound CT MR. 2019;40(1):67–78. doi:10.1053/j.sult.2018.10.013.
16.
Brough AL, Bennett J, Morgan B, et al. Anthropological measurement of the juvenile clavicle using multi-detector computed tomography--affirming reliability. J Forensic Sci. 2013;58(4):946–951. doi:10.1111/1556–4029.12126.
17.
Stull KE, Tise ML, Ali Z, Fowler DR. Accuracy and reliability of measurements obtained from computed tomography 3D volume rendered images. Forensic Sci Int. 2014;238:133–140. doi:10.1016/j.forsciint.2014.03.005.
18.
Wu GT, Audlin JR, Grewal JS, Tatum SA. Comparing Caliper versus Computed Tomography Measurements of Cranial Dimensions in Children. The Laryngoscope. 2021;131(4):773–775. doi:10.1002/lary.29086.
20.
Tettamanti C, Frigiolini F, Franceschetti L, et al. A Forensic Approach to Complex Identification Cases: The Collapse of an Italian Cemetery into the Sea. Genes. 2025;16(3):277. doi:10.3390/genes16030277.
21.
Singla K, Singi Y, Sinha R, Dhattarwal K. Estimation of Sexual Dimorphism by Osteometric Analysis of Patella. J Punjab Acad Forensic Med Toxicol. 2021;21:58–67. doi:10.5958/0974–083X.2021.00010.8.
